Gray 4 pin Oil Pressure

Oil Pressure Switch Information

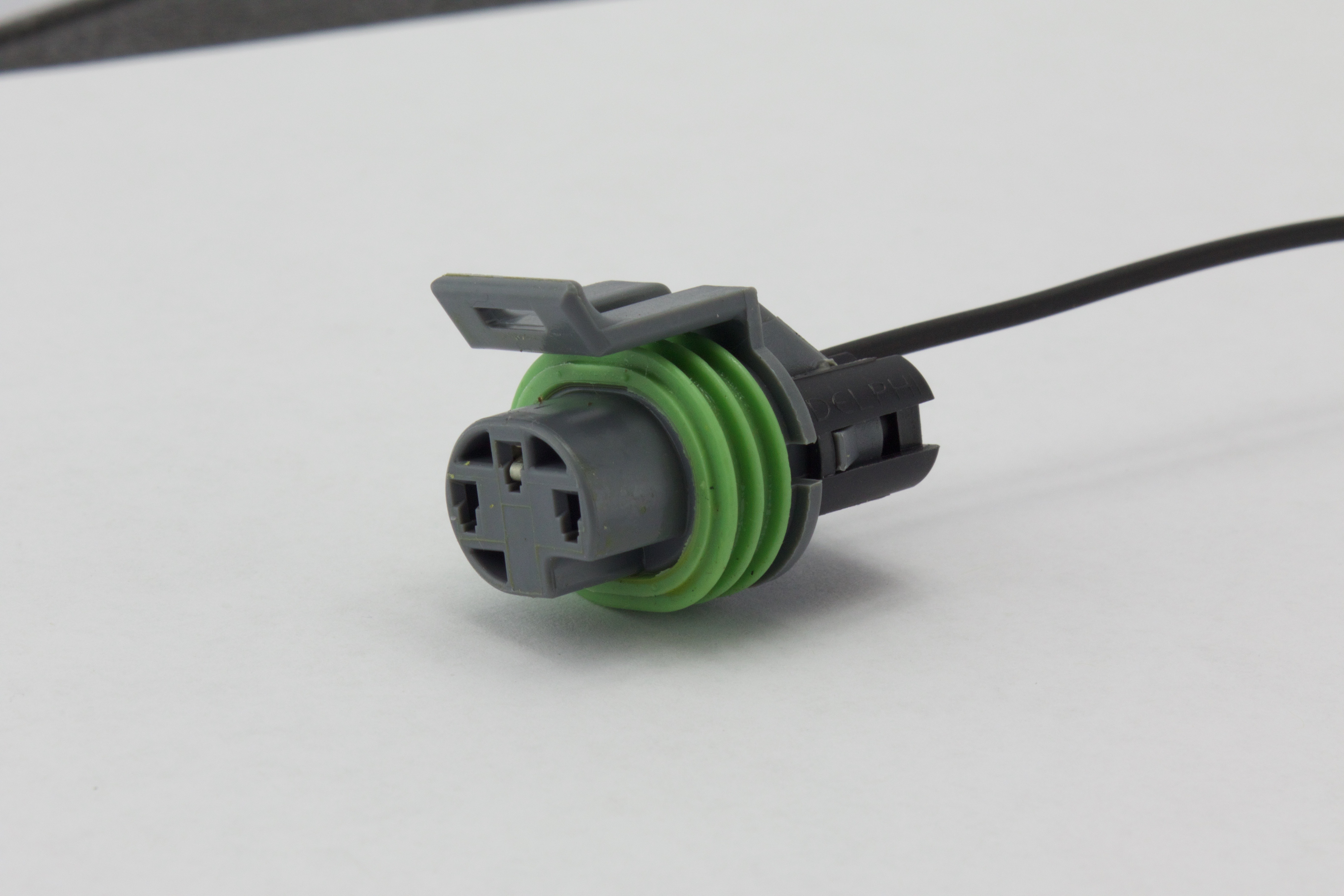

Single wire Oil Pressure connector (above). If it does not plug into the sensor you have on your engine, it is most likely because the 3 pin sensor on your engine will not work with your oil pressure gauge. The easiest solution is to replace the 3 wire sensor with a single wire sending unit from a 1999-2002 Silverado 1500 5.3L (below). This sender should thread in to the LS block properly, and work with your vehicles instrument cluster.

AutoZone part number: PS391
